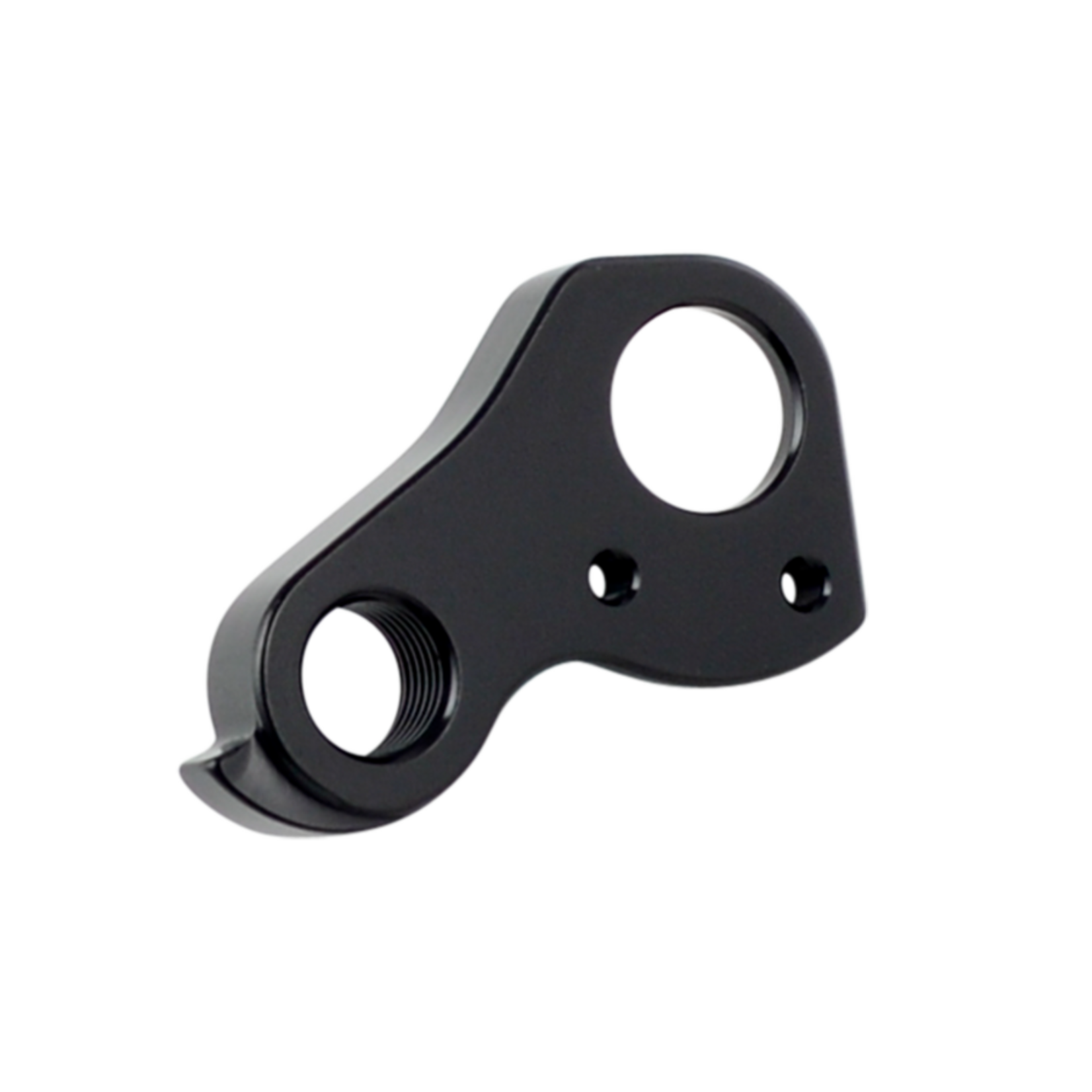

Hanger 1027 from derailleurhanger.com is a black anodized 6061 aluminum replacement derailleur hanger that mounts on the outside of the frame. It is thru axle compatible and comes with its two screws.

What it's for

A derailleur hanger is the small replaceable tab that connects the rear derailleur to the frame. It is made to bend or break in a crash so the frame and derailleur are spared. A bent hanger causes poor shifting that no cable adjustment will fix.

Compatibility

• Brands listed: Alchemy, Chiru (Kegeti, Vagus), Curve (Belgie AIR, Belgie Ultra, Belgie V3, DownRock, GMX models, GXR), Decathlon (Triban GRVL 900 Titan), Enigma (disc models), Gunnar (Hyper-X), Haley (All Road), J.Laverack, Kingdom (Vendetta X2), Merlin, Moots, Neuhaus Metalworks (Hummingbird), Revel, Vaast (A1), Veloheld (Icon, IconX), Zanconato (CX)
• Replaces: Decathlon 8732206, J.Laverack Hanger 5, Revel 310-han17-0001
• Axle: thru axle. The hanger works with a separate axle locknut threaded M12 x 1.0, M12 x 1.5, or M12 x 1.75 to match your axle.
• How to check yours: hangers are frame specific. Remove your old hanger and compare its shape, mounting holes, and thickness to the photos for this hanger number, and confirm your bike's make, model, and year.

Setup and installation

• Mount: outside of the frame
• Fasteners: 2. One M4 x 12 mm flat head screw, and one M4 x 6 mm socket head screw for the axle locknut.
• OMG's bike shop can install the hanger, check its alignment, and adjust the derailleur.

Specs

• Hanger number: 1027

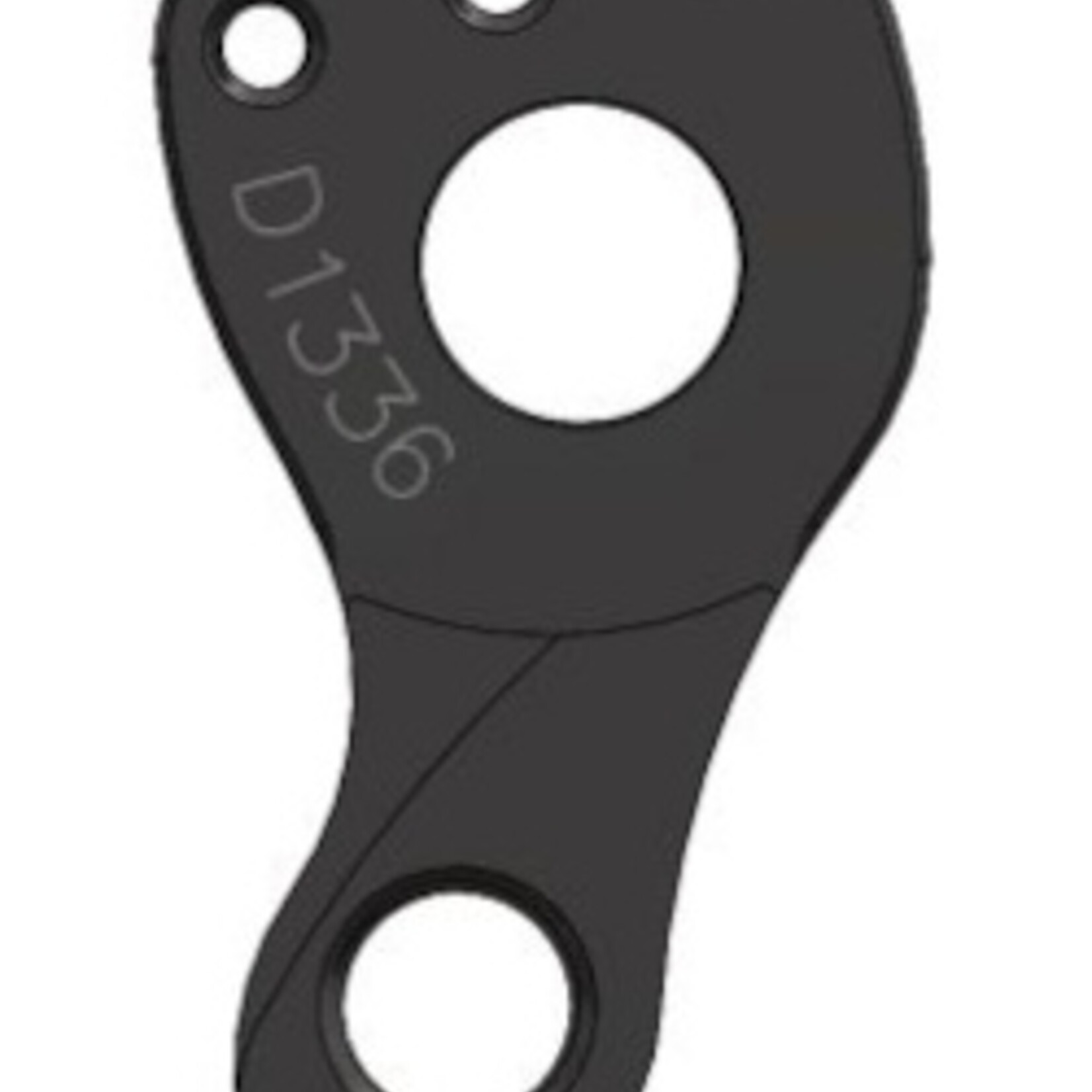

• Maker part number: Pilo D1336
• Material: 6061 aluminum
• Finish: black anodized
• Mount: outside
• Weight: 0.9 oz

In the box

• Hanger
• M4 x 12 mm flat head screw
• M4 x 6 mm socket head screw

You will also need

• Axle locknut matching your axle thread, if yours is missing or damaged. It is sold separately.
