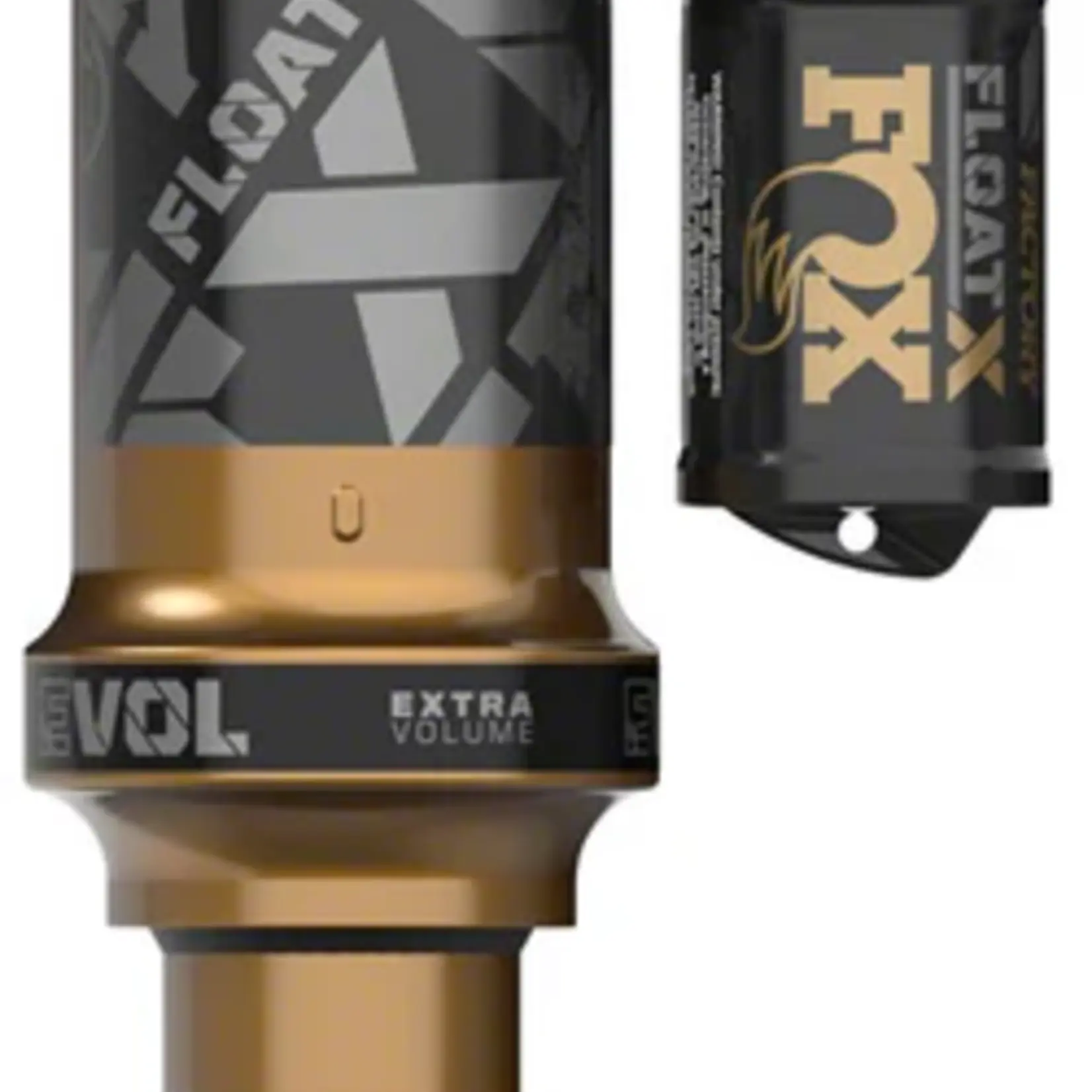

The FOX FLOAT X Factory is an air shock with a piggyback reservoir for all mountain and aggressive trail riding. This one is a 190 x 45 mm metric shock with the EVOL LV air sleeve and a 2 position firm lever.

What it's for

A rear shock upgrade or replacement for trail bikes that take a 190 x 45 mm metric shock.

How it works

Monotube damper with a high flow main piston: FOX says the piston adds sensitivity, support, and rear tire grip.

EVOL air sleeve: a larger negative air chamber lets you run lower pressure for a more linear feel and better small bump grip.

Piggyback reservoir: sized for each shock length to balance performance and weight.

Kashima Coat: a hard, slick coating on the shock body for durability.

Features

• Low speed compression: 11 clicks, tool free
• Low speed rebound: 16 clicks, tool free
• Firm mode: 2 position lever
• Bearing mount compatible at both ends

Compatibility

• Size: 190 x 45 mm metric (eye to eye x stroke)
• How to check yours: your frame maker lists the shock size, mount type, and hardware. All three must match

Care and service

• FOX service interval: every 125 hours of riding or once a year, whichever comes first
• Service sooner for bike park, downhill, electric bikes, or wet, muddy, or dusty riding

Specs

• Size: 190 x 45 mm
• Spring: EVOL LV air
• Volume spacer installed: 0.6
• Finish: Kashima Coat
• FOX part number: 979-01-170

You will also need

• Mounting hardware for your frame
