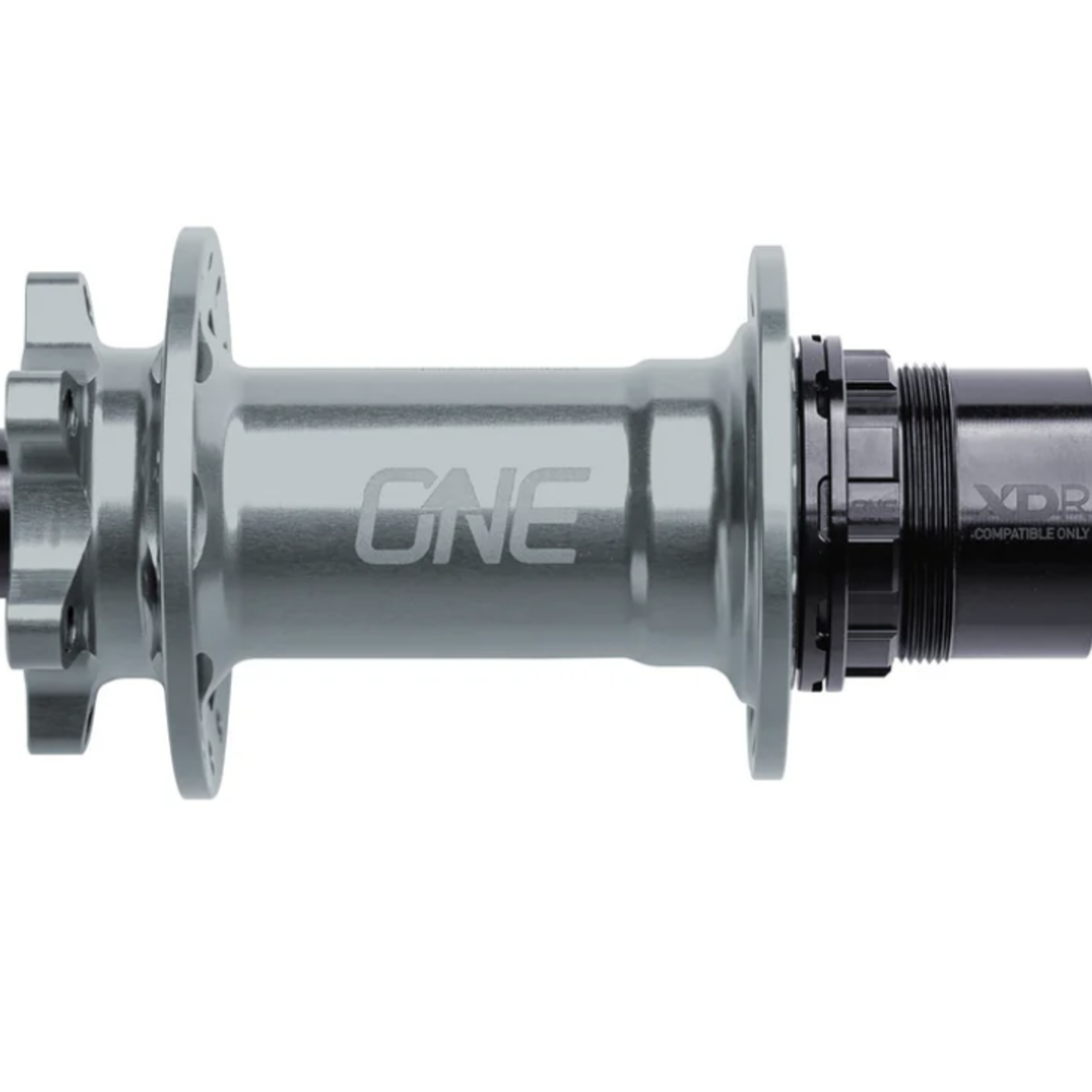

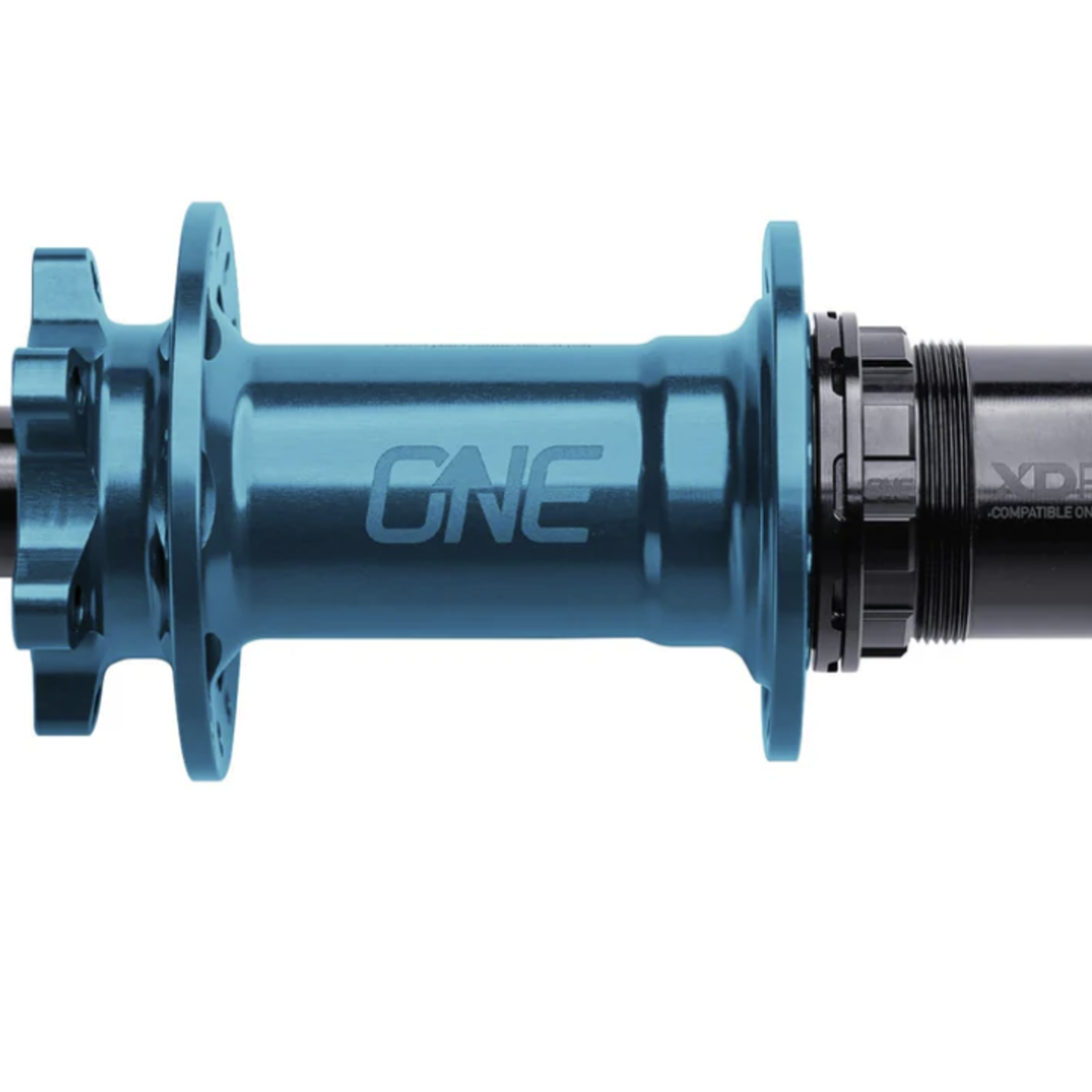

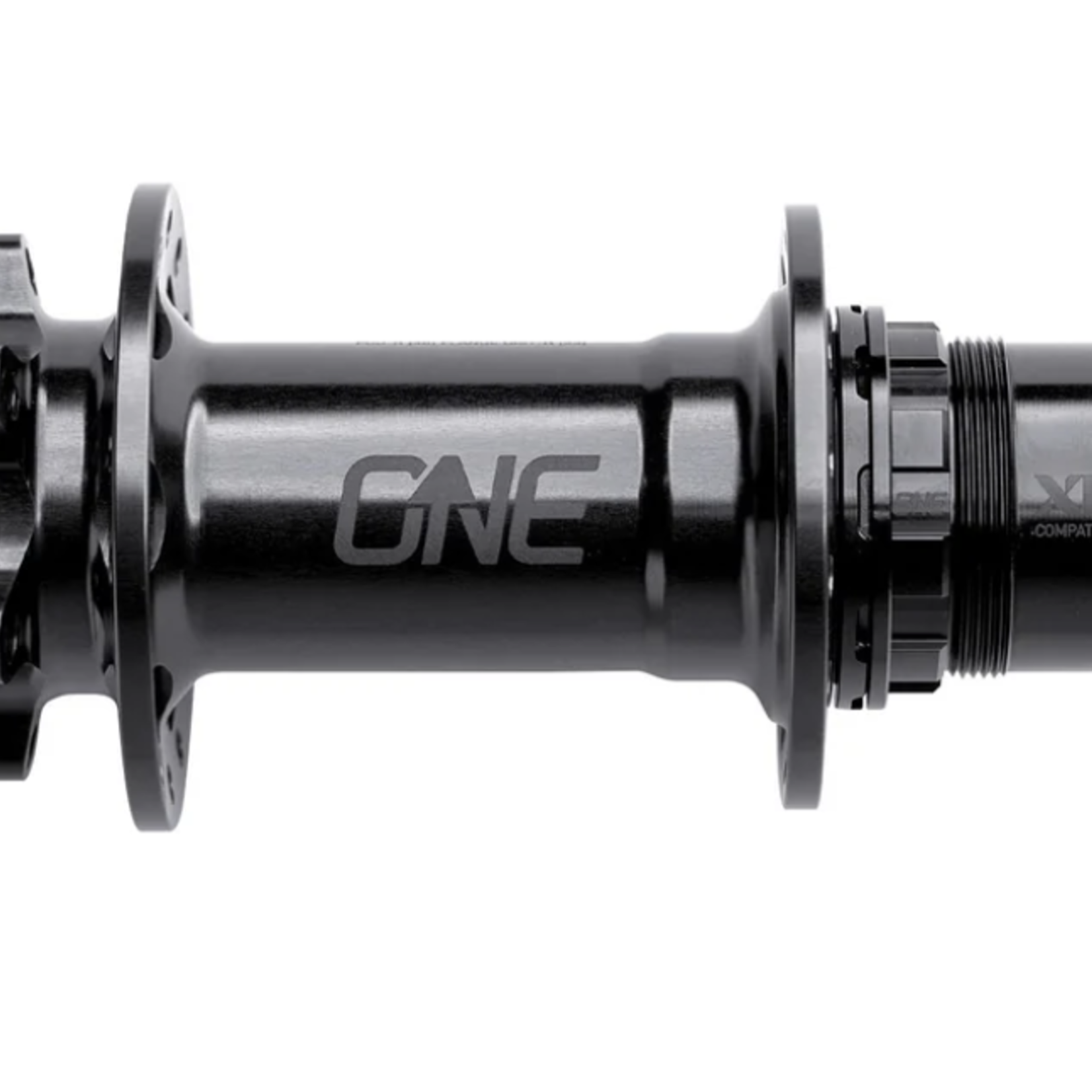

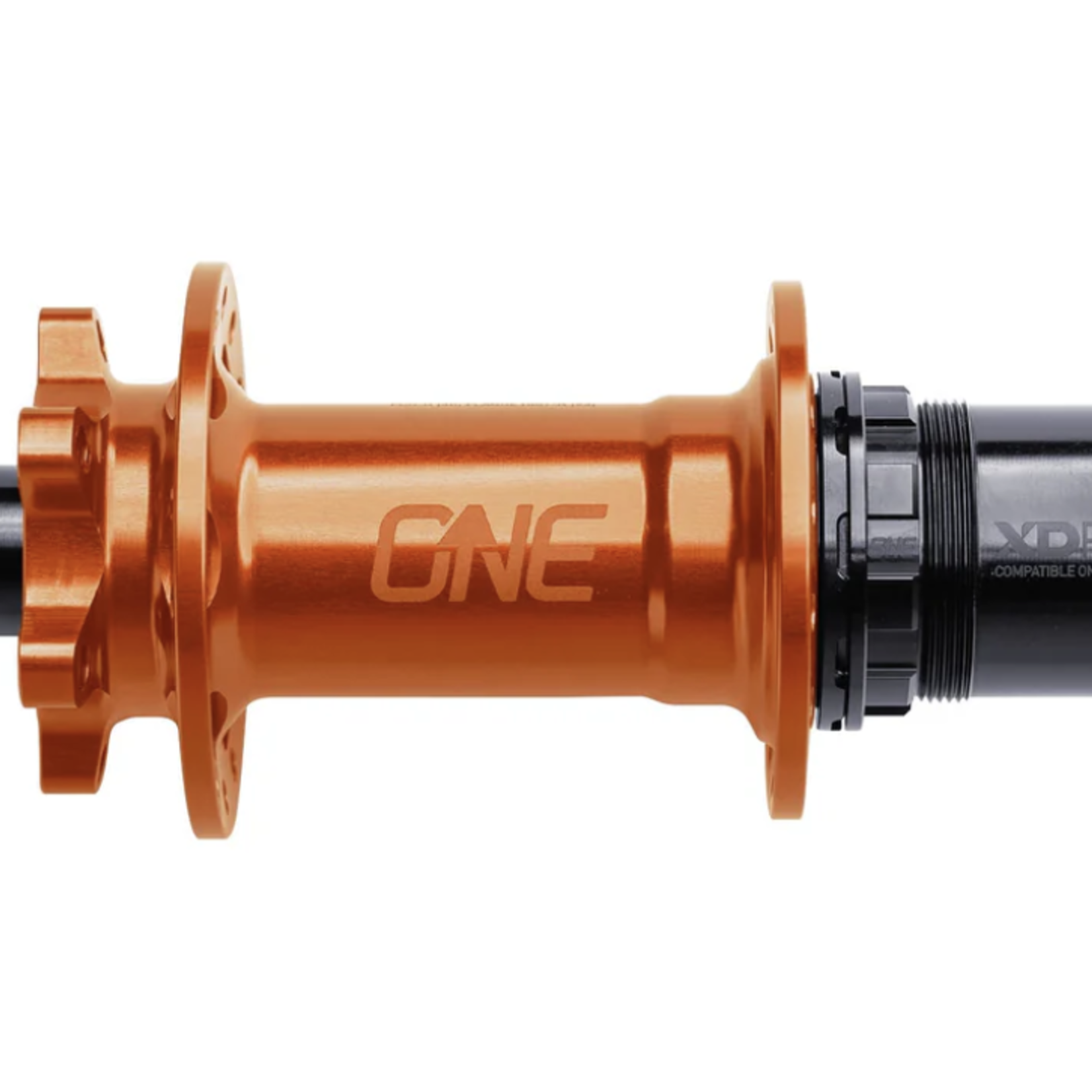

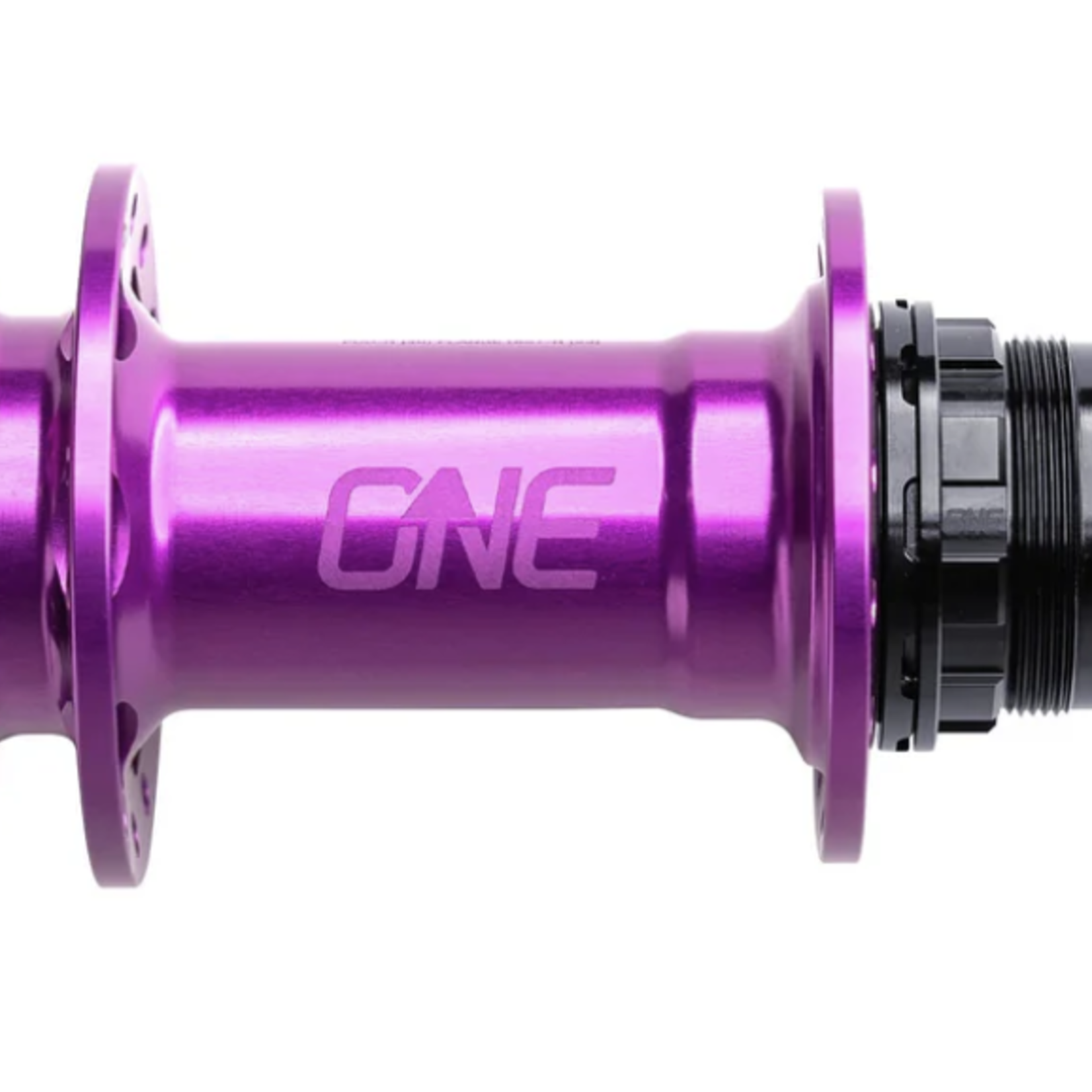

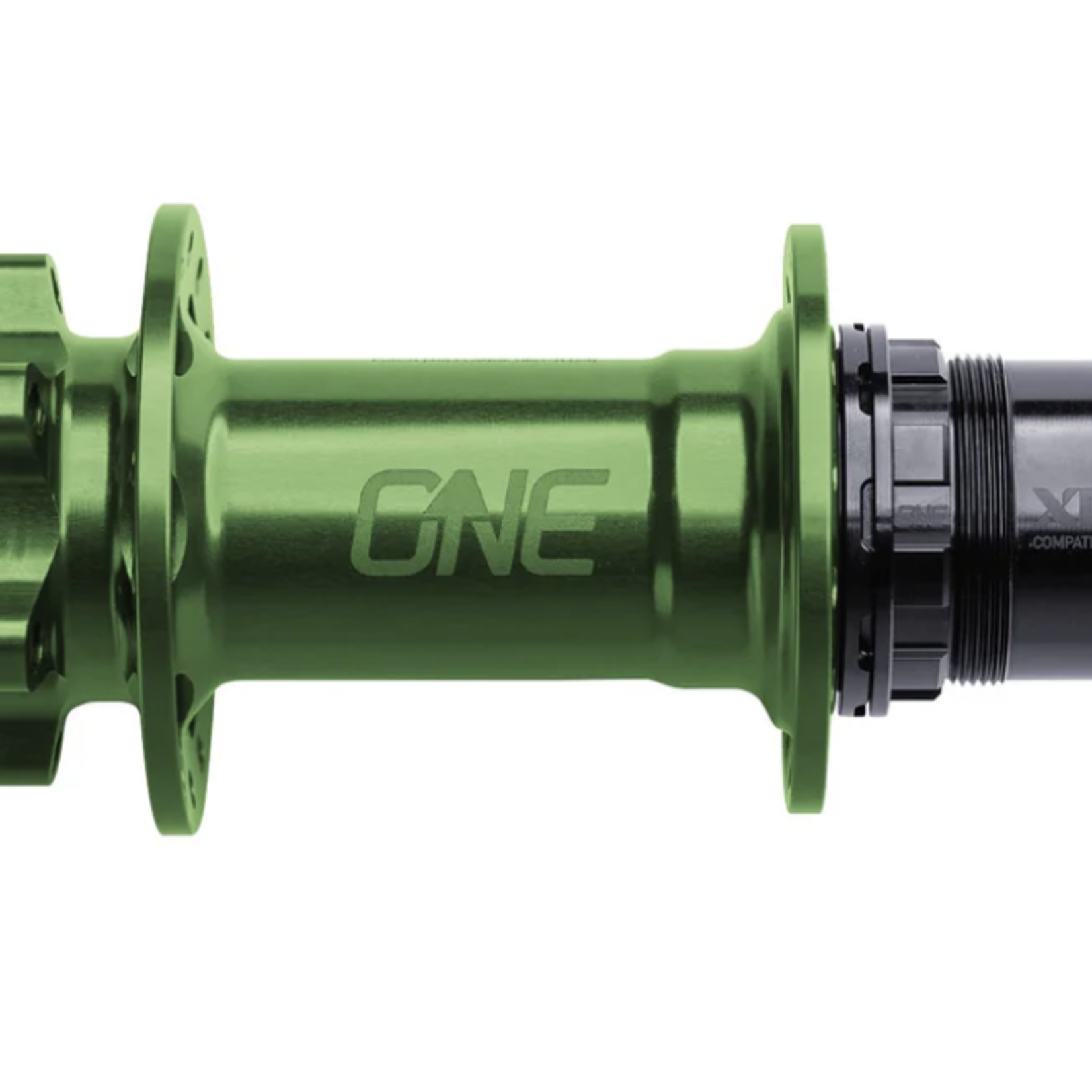

The OneUp Rear Hub is a 220 g Boost rear hub with a 44 point ratchet drive. The drive ring is machined into the hub shell, so there is no threaded ring to fail.

What it's for

A rear hub for custom trail and enduro wheel builds.

How it works

Ratchet drive: two 44 tooth ratchet rings engage every 8.2 degrees.

Wide spaced ABEC 5 cartridge bearings reduce wear and side loading.

Compatibility

• Axle: 12 x 148 mm Boost
• Freehub: XDR, Microspline, or HG (sold separately)
• Spokes: J bend
• How to check yours: Boost frames are 148 mm wide between the dropouts

Specs

• Weight: 220 g
• Engagement: 44 points, 8.2 degrees
• Body: 7075-T6 aluminum
• Bearings: 6902 hub, 6802 freehub
• Flange diameter (PCD): 52 mm left, 48 mm right
• Flange distance: 38 mm left, 23 mm right
• Holes: 32

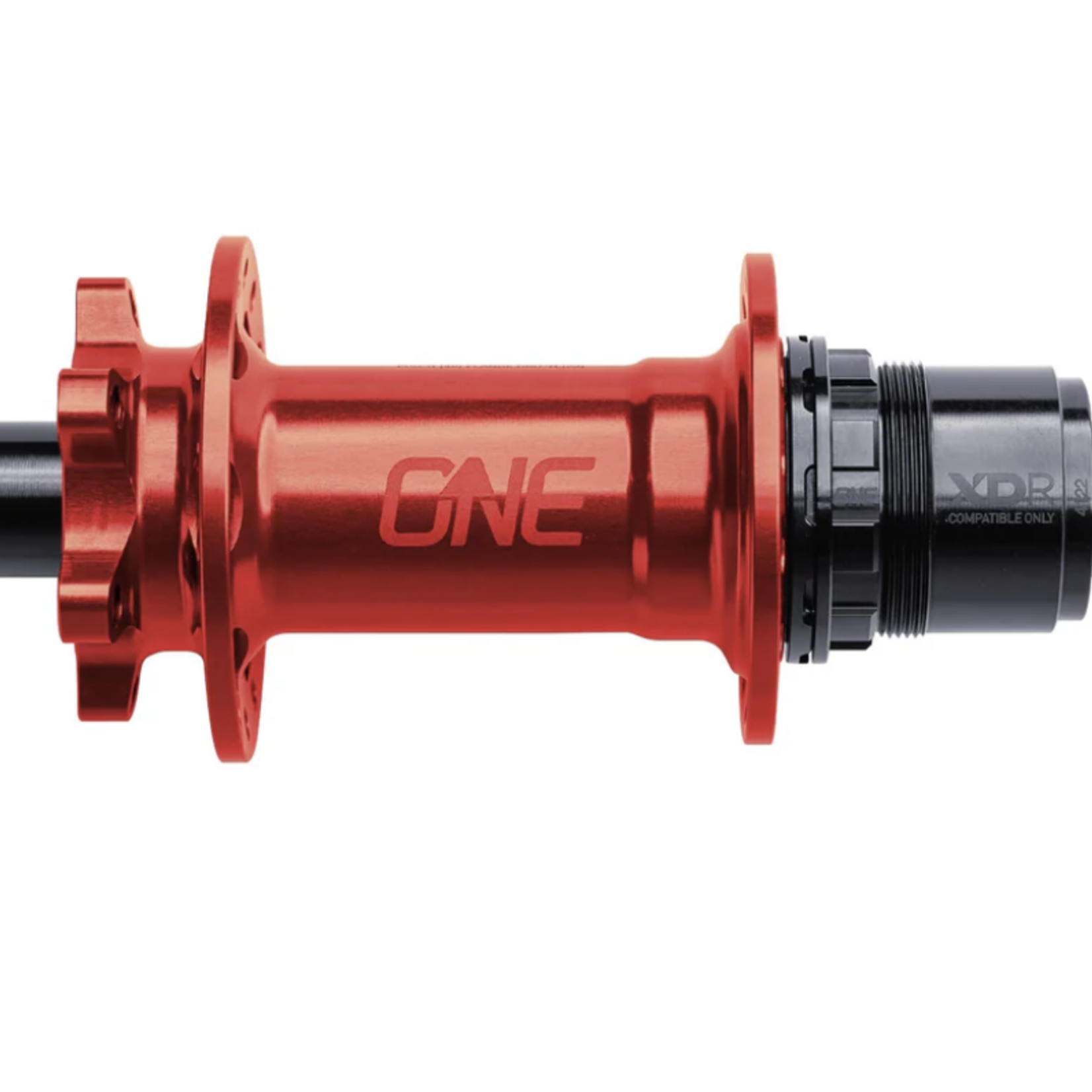

• Color: red
• Warranty: 2 years

In the box

• Rear hub
• Dumonde Tech Pro X freehub grease
• 2 x 44T ratchets
• Ratchet spring
• Non drive side end cap
• Drive side dust cover

You will also need

• OneUp freehub body for your cassette type
