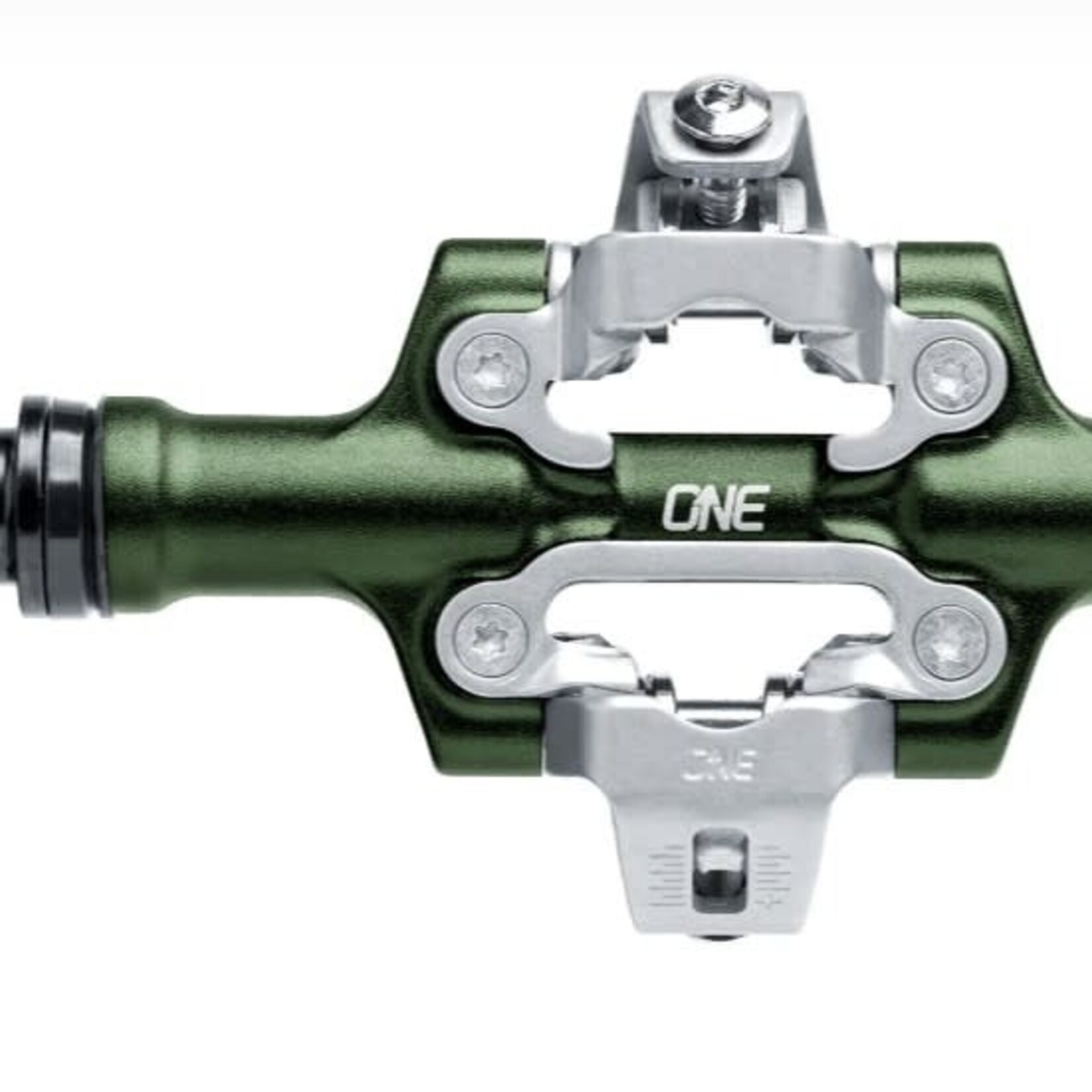

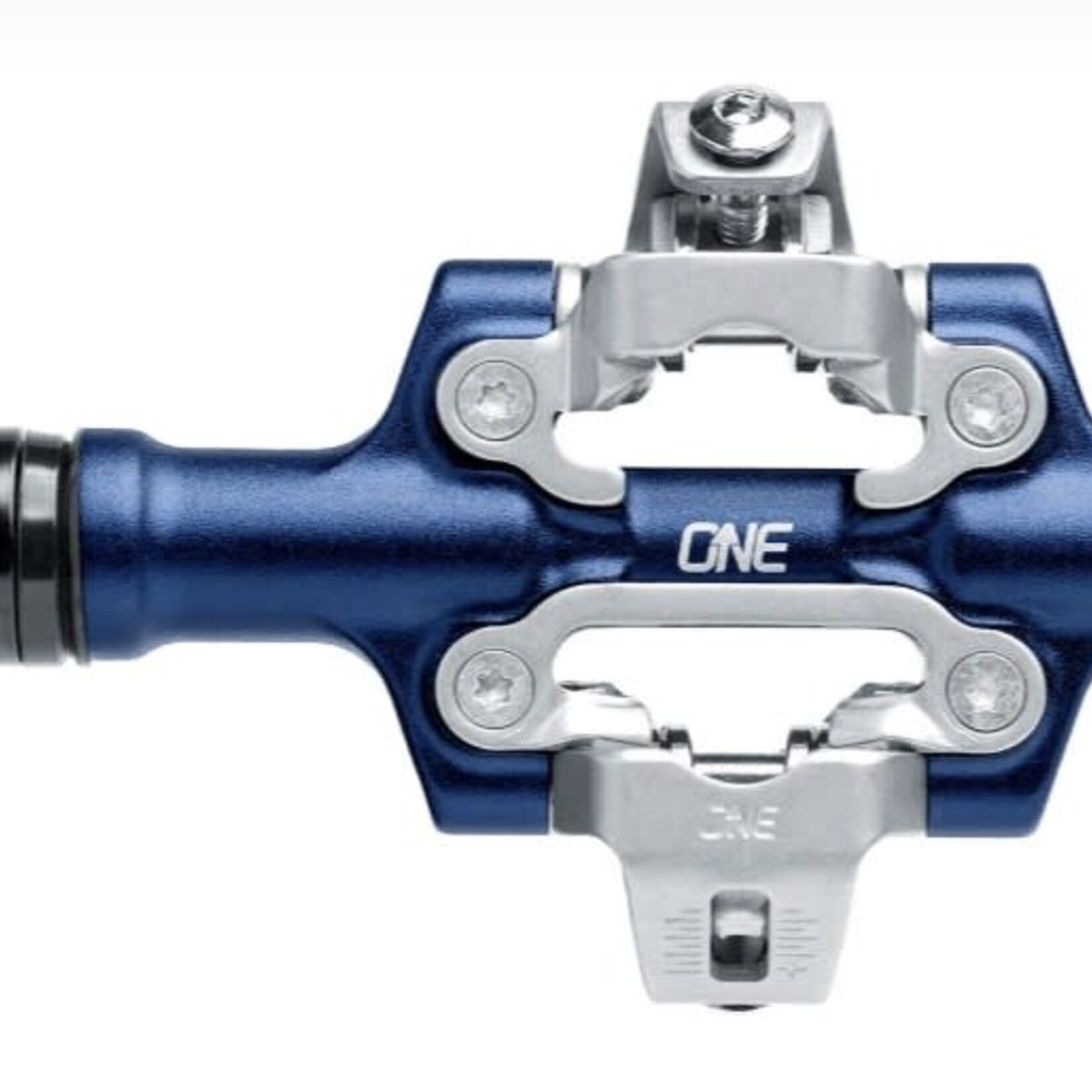

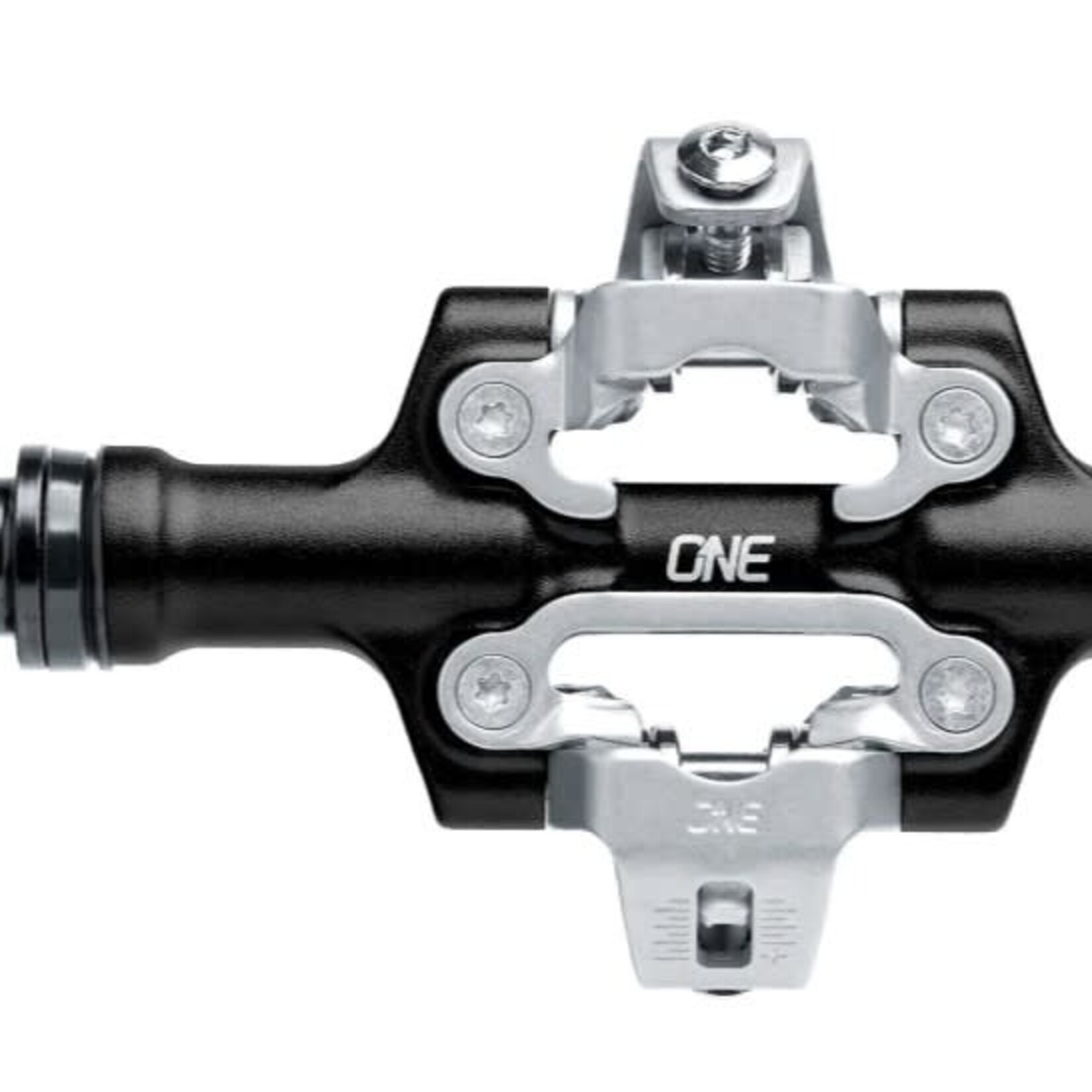

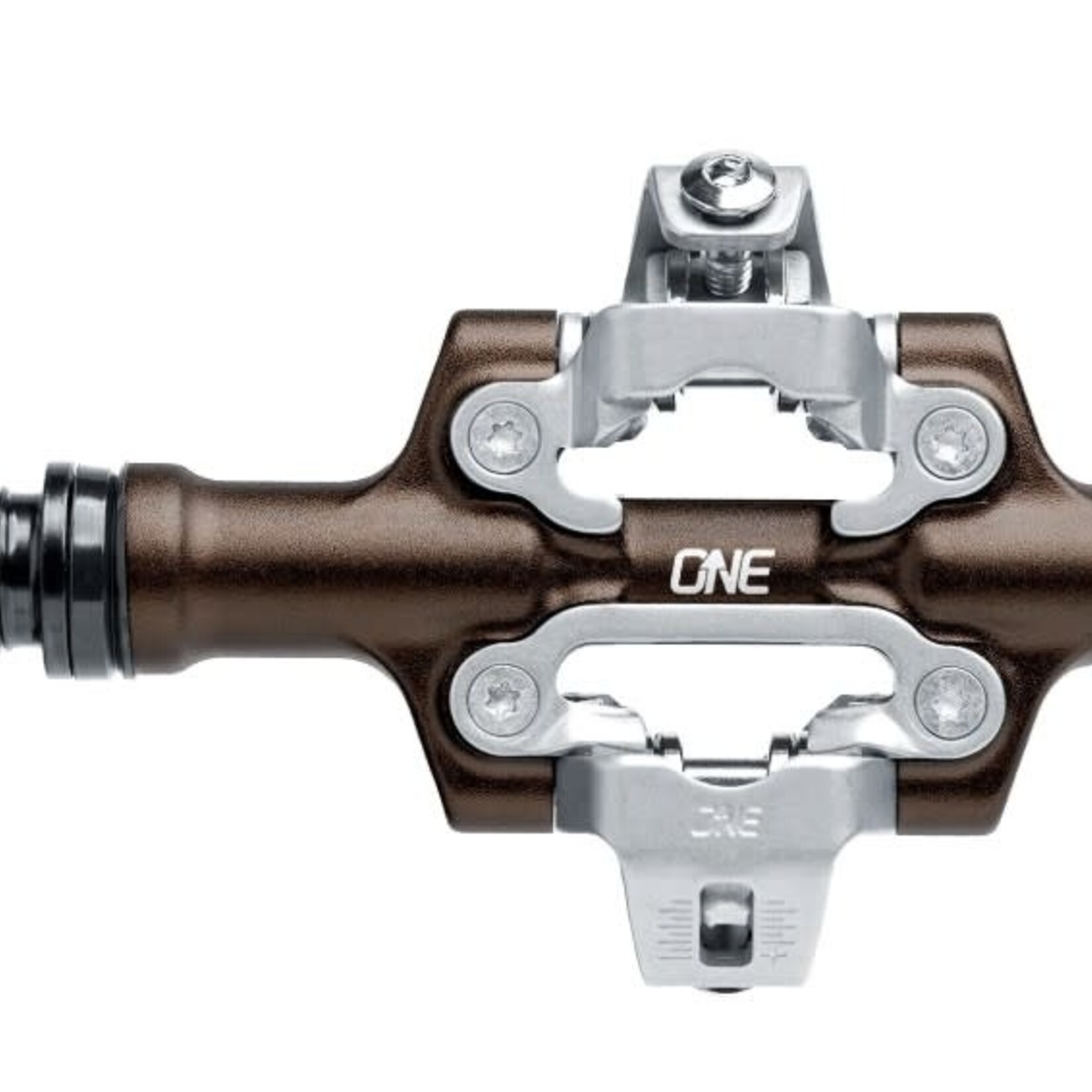

The OneUp XC Clip is a thin, light SPD compatible clip pedal for cross country riding and racing. Cleats are included.

What it's for

A light clip pedal for cross country, gravel, and trail riders who want a small, low profile pedal.

How it works

Stainless steel binding: holds the cleat without play while keeping 5 degrees of float.

Release tension adjusts over a wide range, with a visual indicator.

Compatibility

• Cleats: SPD compatible (included)
• Shoes: 2 bolt SPD

Care and service

• Bearing service tool included
• Rebuild kit is shared with OneUp Wave and Clip pedals

Specs

• Weight: 303 g per pair
• Size: 75 x 68 mm
• Thickness: 14.4 mm body, 26.8 mm at the binding
• Stance: 55 mm from binding center to crank face
• Float: 5 degrees
• Release angle: 12 degrees
• Bearings: inboard igus bushing, 2 outboard sealed cartridge bearings
• Axle: chromoly steel, black ED coat
• Colors: black, bronze
• Warranty: 2 years

In the box

• 2 pedals
• 2 cleats with hardware
• 2 cleat spacers (1 mm)
• Pedal bearing nut tool

Pairs with

• OneUp Components SPD Cleats & Spacers
