MICRO TRAXION

A high efficiency, lightweight progress capture pulley

About The Product

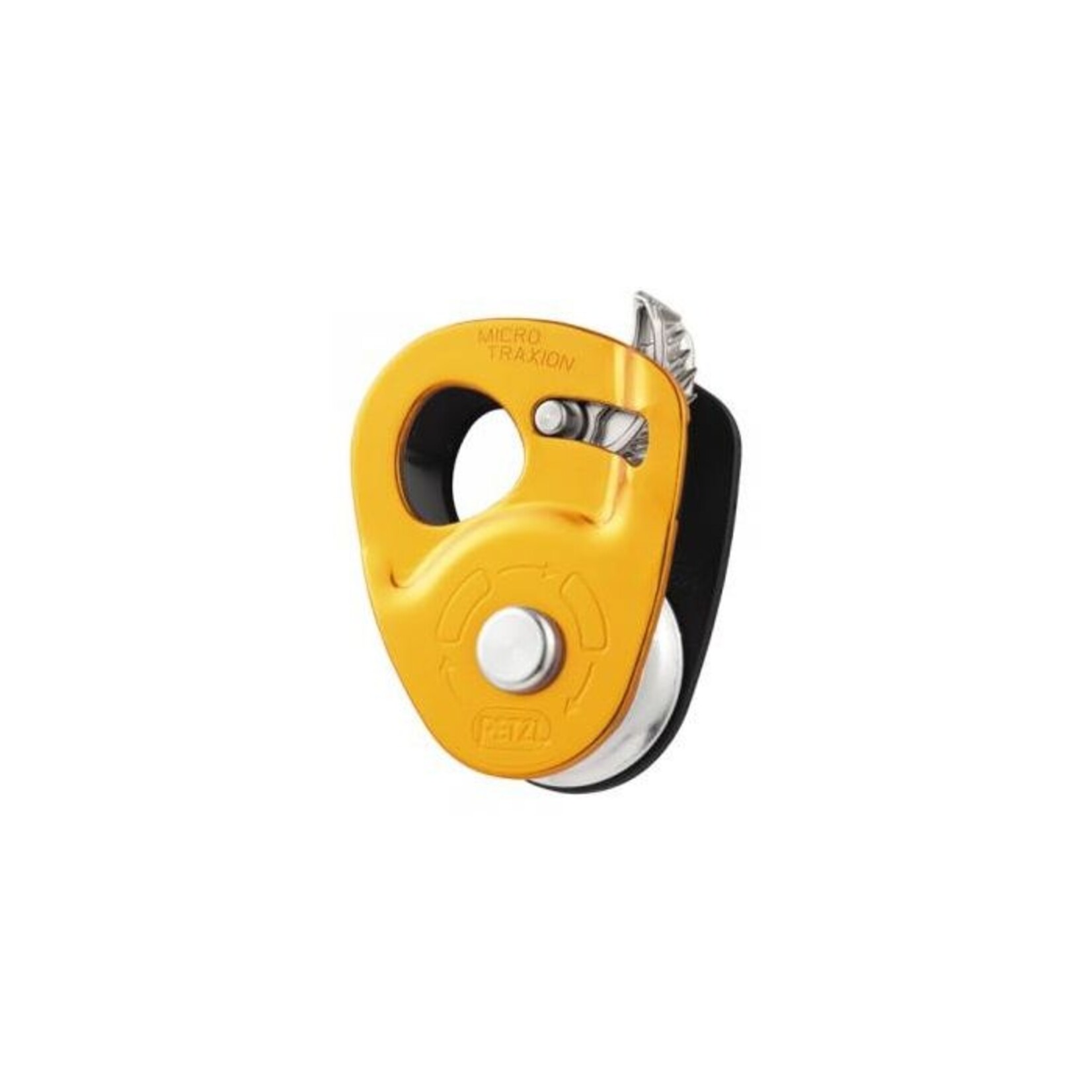

MICRO TRAXION is a compact and lightweight progress capture pulley at 85 g, designed for crevasse rescue, hauling, self-rescue, and use as an emergency ascender. The cam locks in the open position so the device also works as a simple pulley. Sealed ball bearings provide excellent efficiency at 91%.

Description

Versatile

• Designed for crevasse rescue, hauling, self-rescue, and use as an emergency ascender
• Functions as a simple pulley when the cam is locked in the raised position

Light and Compact

• Weighs only 85 g
• A hole allows an Sm'D carabiner to connect to the pulley with a cord, keeping the device secured to your gear

High Efficiency

• Sealed ball bearings provide excellent efficiency at 91%
• Works on frozen or muddy ropes
• Compatible with 7 to 11 mm diameter ropes
• Rope installation diagrams are engraved inside the pulley

Specifications

Weight: 85 g
Certification(s): CE EN 567, UIAA
Min. Rope Diameter: 7 mm
Max. Rope Diameter: 11 mm
Sheave Type: Sealed ball bearings
Sheave Diameter: 27 mm
Working Load: 2 x 2.5 = 5 kN
Breaking Strength: 2 x 7.5 = 15 kN
Working Load as Progress Capture Pulley: 2.5 kN
Breaking Strength as Progress Capture Pulley: 4 kN
Efficiency: 91%
Compatible with the PUR'LINE 6 mm cord only for hauling a pack (more information in the Instructions for Use at petzl.com)
Compatible with the RAD LINE 6 mm cord (more information in the Instructions for Use at petzl.com)
