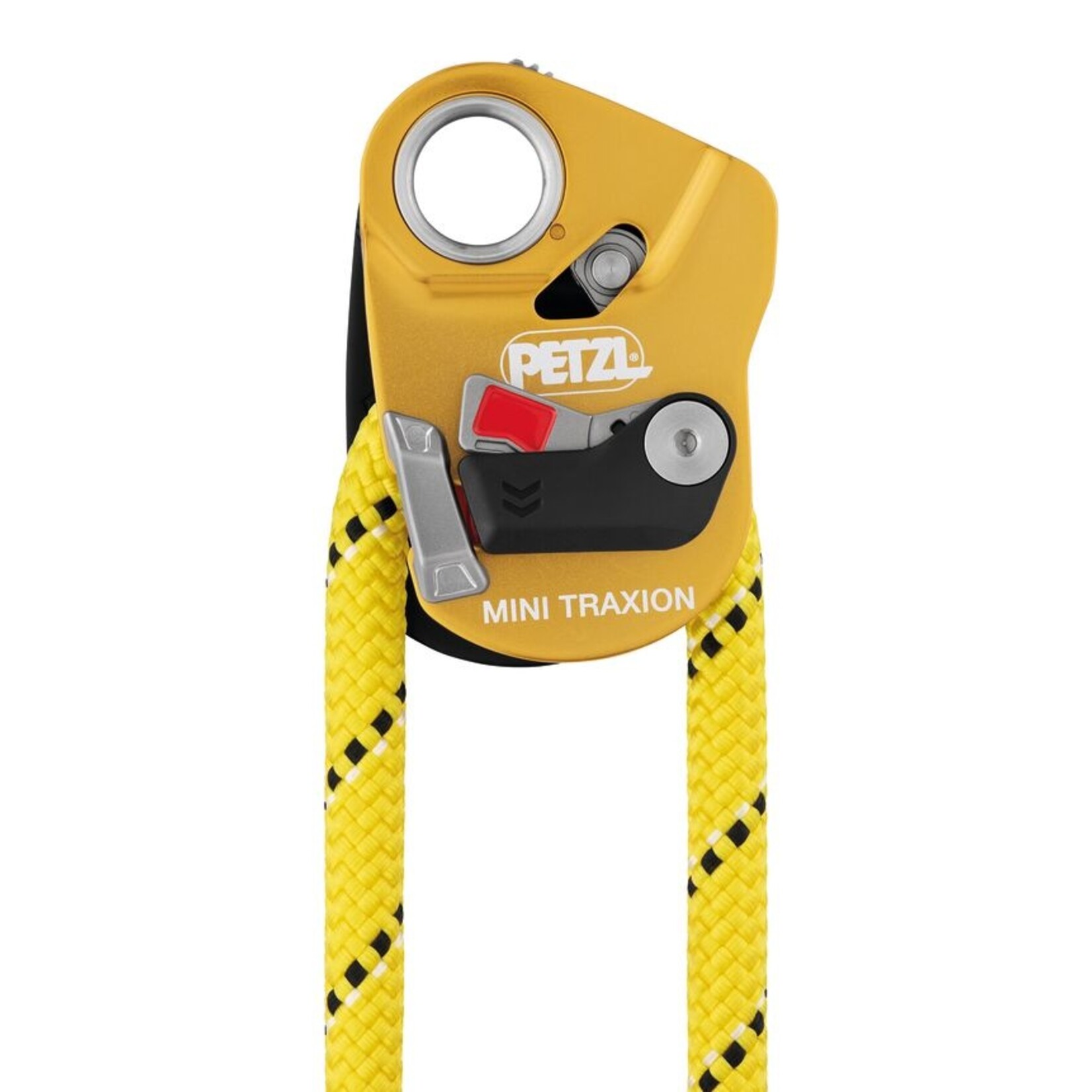

The Petzl MINI TRAXION® is a compact, high-efficiency progress-capture pulley for hauling and rescue. Its openable design allows easy rope installation, while sealed ball bearings provide 93% efficiency and smooth operation under heavy loads.
The Petzl MINI TRAXION® is a compact, high-efficiency progress-capture pulley designed for hauling, rescue, and rope access applications. Its openable side plate allows the rope to be installed without removing the pulley from the anchor, making setup faster and reducing the risk of dropping the device.
A large aluminum sheave with sealed ball bearings delivers an impressive 93% efficiency for smooth hauling, even under heavy loads. The stainless steel toothed cam automatically captures progress and features a self-cleaning slot for dependable performance in muddy, icy, or dirty conditions. When needed, the cam can be locked open, allowing the MINI TRAXION® to function as a standard pulley.
Large 32 mm aluminum sheave with sealed ball bearings
93% efficiency for smooth, low-friction hauling
Designed for hauling, rescue, and rope access applications
Openable side plate allows installation while attached to the anchor
Triple-action opening system is easy to operate, even while wearing gloves
Reduces the risk of dropping the pulley during setup
Integrated toothed cam automatically captures progress
Cam locks in the open position for use as a standard pulley
Self-cleaning cam slot maintains reliable performance in dirty, wet, or icy environments
Stainless steel cam provides long-lasting durability
Reinforced side plates help protect the rope path
Lightweight design weighs only 150 g
| Feature | Specification |
|---|---|
| Weight | 150 g |
| Compatible Rope Diameter | 7–11 mm |
| Sheave Diameter | 32 mm |
| Sheave Type | Sealed Ball Bearings |
| Efficiency | 93% |
| Working Load | 5 kN (2 × 2.5 kN) |
| Breaking Strength | 20 kN (2 × 10 kN) |
| Working Load (Progress Capture) | 2.5 kN |
| Breaking Strength (Progress Capture) | 4 kN |
| Materials | Aluminum, Stainless Steel, Nylon |
| Certifications | CE EN 567, CE EN 12278, CE EN 12841 Type B, NFPA 2500 Technical Use, XF 494 |
Compatible with 7–11 mm ropes
Compatible with Petzl RAD LINE 6 mm cord
Compatible with Petzl PUR'LINE 6 mm cord for hauling packs only
